Outstanding Performance

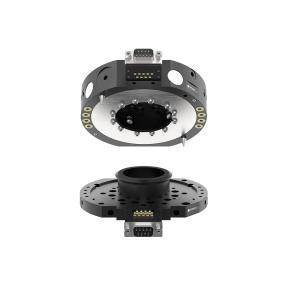

1.SQC-B quick-change tool changers automatically replace tools, utilizing spring locks that do not need air supply once they are locked.
● In the gas cut-off state, no gas supply is needed for the locking mechanism, making it perfect for environments with infrequent tool changes, providing energy savings, ensuring safety, and eliminating the risk of tool plate drop due to gas failure.
● The tool changer housing is crafted from lightweight aluminium alloy and undergoes a specialized hardening treatment to ensure excellent wear and impact resistance.
● The innovative ejection spring locking design eliminates the need for continuous air supply after locking, preventing accidental loss of the tool plate due to gas cut-off.
● All locking parts are constructed from high-strength, high-hardness steel.
● The tool change process takes just seconds, which reduces maintenance and repair downtime.
● Automatic tool changing increases operator safety.
Model and Technical Parameters
| Model | Recommended handling weight [Kg] | Locking force (5.5bar)[N] | Repeat accuracy [mm] | Master plate weight [kg] | Tool plate weight [kg] | Max. moment My/Mx[Nm] | Max. moment Mz[Nm] | Air connection thread Pneumatic feed- through |
| SQC-15B | 20 | 1768 | 0.02 | 0.9 | 0.6 | 51 | 72 | 8-M5 |
| SQC-35B | 50 | 3730 | 0.02 | 3.2 | 1.6 | 155 | 216 | 8-G1/8″ |
