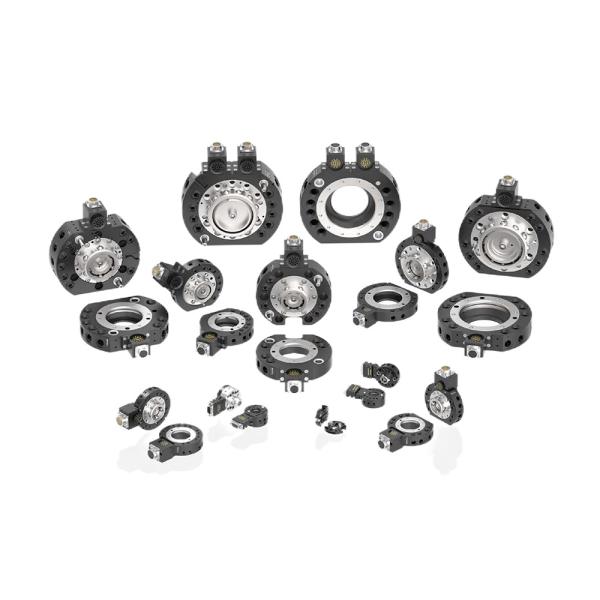

Industrial Quick-Change Robotic Tool Changer SQC-A with High Moment Capacity

  • 1
  • 2
  • 3

Brand Name : Hyclamavin

Model Number : SQC-A

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : USD500-USD4000

Supply Ability : 1000 sets per month

Delivery Time : 4-6 weeks

Packaging Details : Carton case

Tool Change Method : Manual

Clamping Force : 1000 N

Tool Weight Compatibility : Up to 2 kg

Tool Plate Weight : 0.6kg-1.6kg

Maximum Load Capacity : 50 kg

Number Of Tool Positions : 6

Product Type : Mechanical Tool Changer

Maximum Tool Diameter : 100 mm

Safety Features : Locking Mechanism

Mounting Method : Screw Mount

Operating Temperature : 0-80°C

Contact Now

Quick-Change Tool Changer, Pneumatic Lock SQC-A
Product Introduction

Industrial Quick-Change Robotic Tool Changer SQC-A with High Moment Capacity

Excellent performance

SQC-A automatic tool changers feature a protective system that ensures the tool remains attached even if air pressure drops.
● Fail-safe locking minimizes piston force and secures the tool plate during air failure
● High torque load is supported by the oversized piston and external clamping lock
● All working elements are made from hardened stainless steel
● Manual override possible without spring resistance
● Reduces time needed for maintenance and tool replacement
● Enhances operational safety through automation

Industrial Quick-Change Robotic Tool Changer SQC-A with High Moment Capacity

Optional spring

SQC-A can include a built-in spring that acts as a backup safety mechanism.
● Increases locking strength of the changer
● Spring prevents tool drop during air interruption, complementing the fail-safe design

Industrial Quick-Change Robotic Tool Changer SQC-A with High Moment Capacity

Model and Technical Parameters

Model Recommended handling weight[Kg] Locking force (5.5bar)[N] Repeat accuracy [mm] Master plate weight [kg] Tool plate weight [kg] Max. moment My/Mx[Nm] Max. moment Mz[Nm] Air connection thread Pneumatic feed- through
SQC-1A 1.4 170 0.01 0.04 0.03 2.75 3.43 4-M5
SQC-5A 8 690 0.02 0.29 0.15 37 50 6-M5
SQC-11A 16 1100 0.02 0.14 0.09 76 105 6-M5
SQC-20A 25 2300 0.02 0.51 0.33 170 218 12-M5
SQC-21A 25 2300 0.02 0.51 0.33 170 229 8-G1/8″
SQC-40A 50 4500 0.02 1.12 0.61 673 673 8-G1/8″
SQC-41A 50 4500 0.02 1.4 0.7 473 649

6-G3/8″

4-G1/8″
SQC-60A 75 7400 0.02 1.3 0.7 586 315 8-G1/8″
SQC-71A 79 8100 0.02 1.86 1.34 1188 840 8-G1/4″
SQC-76A 100 12000 0.02 2.3 1.4 1625 2100 5-G3/8″
SQC-110A 150 12000 0.02 4 2.1 2350 2350 8-G3/8″
SQC-150A 200 16000 0.02 4.85 2.75 4075 1840 10-G3/8″
SQC-160A 300 31000 0.02 6.45 2.9 7165 3810

5-G3/8″

4-G1/2″
SQC-300A 450 35000 0.02 11.86 7.34 9870 8450 10-G3/8″
