2 Jaw Long Stroke Gripper Pneumatic Parallel THP Heavy Duty Pneumatic Gripper

Name: 2 Jaw Long Stroke Gripper Pneumatic Parallel THP Heavy Duty Pneumatic Gripper
Brand: Hyclamavin
Price: 500 USD

China 2 Jaw Long Stroke Gripper Pneumatic Parallel THP Heavy Duty Pneumatic Gripper factory

Brand Name : Hyclamavin

Model Number : THP

Certification : ISO9001

Place of Origin : China

MOQ : 1 pcs

Price : USD500-1000.00/PC

Payment Terms : L/C, T/T

Supply Ability : 500 pcs per month

Delivery Time : 4-6 weeks

Packaging Details : Carton Case

Gripper Weight : 0.45-8.3 kgs

Recommended workpiece weight : 0.8-18.5kgs

Stroke per Jaw : 6 mm-40 mm

Actuation : Pneumatic

Material : High Strength Aluminum Alloy

Gripping Force : High

Number Of Jaws : 2

Operating Pressure : 2.5-8 bar

Operating Temperature : 5-90°C

Jaw Type : Parallel

Protection Class : IP40

Repeat Accuracy : 0.05mm

Contact Now

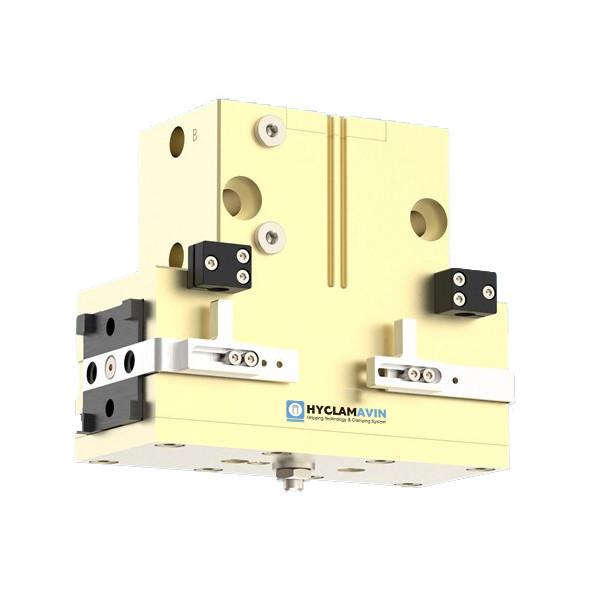

2-Jaw Pneumatic Parallel Long Stroke Gripper THP

Product Information

2 Jaw Long Stroke Gripper Pneumatic Parallel THP Heavy Duty Pneumatic Gripper

Excellent performance

1. THP series gripper with stepless stroke adjustment.

2. THP series gripper, with strong square rail, with high retention and torque.

3. THP series gripper, with a variety of air interface, a variety of installation methods.

4. THP series gripper, have a large grasping stroke while maintaining a small overall size.

2 Jaw Long Stroke Gripper Pneumatic Parallel THP Heavy Duty Pneumatic Gripper

Model and Technical Parameters

Type	Stroke per jaw [mm]	Closing/ opening force[N]	Min. spring force[N]	Weight [kg]	Recommended workpiece weight[kg]	Closing/ opening time[s]	Repeat accuracy [mm]	Protection class IP
THP-224-1	12	160/165		0.45	0.8	0.04/0.04	0.05	40
THP-224-1-AS	12	170/-	10	0.52	0.8	0.04/0.06	0.05	40
THP-224-2	6	340/350		0.45	1.7	0.04/0.04	0.05	40
THP-224-2-AS	6	370/-	30	0.52	1.7	0.04/0.06	0.05	40
THP-240-1	20	440/450		1.2	2.2	0.08/0.08	0.05	40
THP-240-1-AS	20	515/-	75	1.3	2.2	0.08/0.10	0.05	40
THP-240-2	8	1110/1130		1.2	5.5	0.08/0.08	0.05	40
THP-240-2-AS	8	1300/-	190	1.3	5.5	0.08/0.10	0.05	40
THP-260-1	30	675/700		2.9	3.3	0.10/0.10	0.05	40
THP-260-1-AS	30	810/-	135	3.0	3.3	0.10/0.15	0.05	40
THP-260-2	10	2140/2200		2.9	10.7	0.10/0.10	0.05	40
THP-260-2-AS	10	2500/-	360	3.0	10.7	0.10/0.15	0.05	40
THP-280-1	40	1400/1450		8.1	7	0.20/0.20	0.05	40
THP-280-1-AS	40	1700/-	300	8.3	7	0.20/0.25	0.05	40
THP-280-2	15	3700/3800		8.1	18.5	0.20/0.20	0.05	40
THP-280-2-AS	15	4500/-	800	8.3	18.5	0.20/0.25	0.05	40
